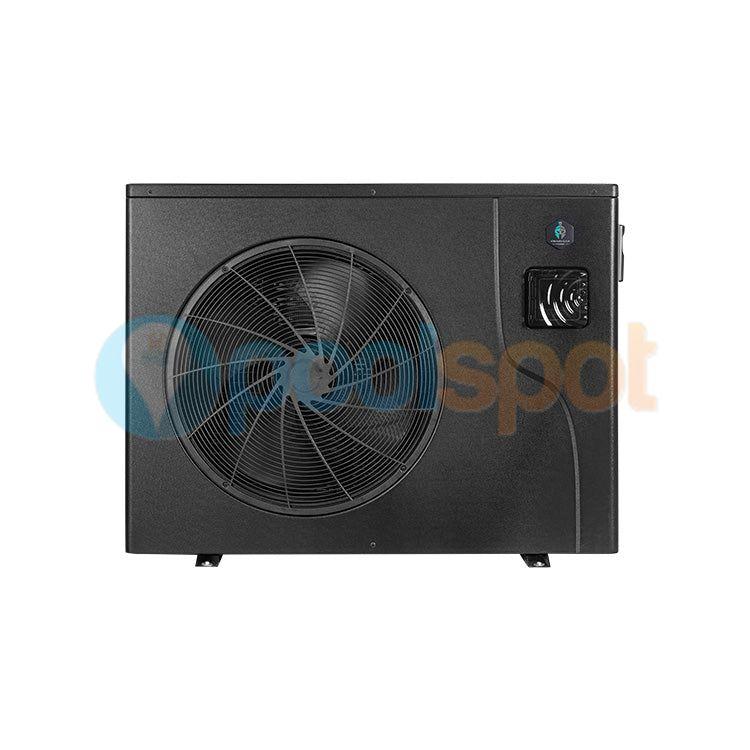

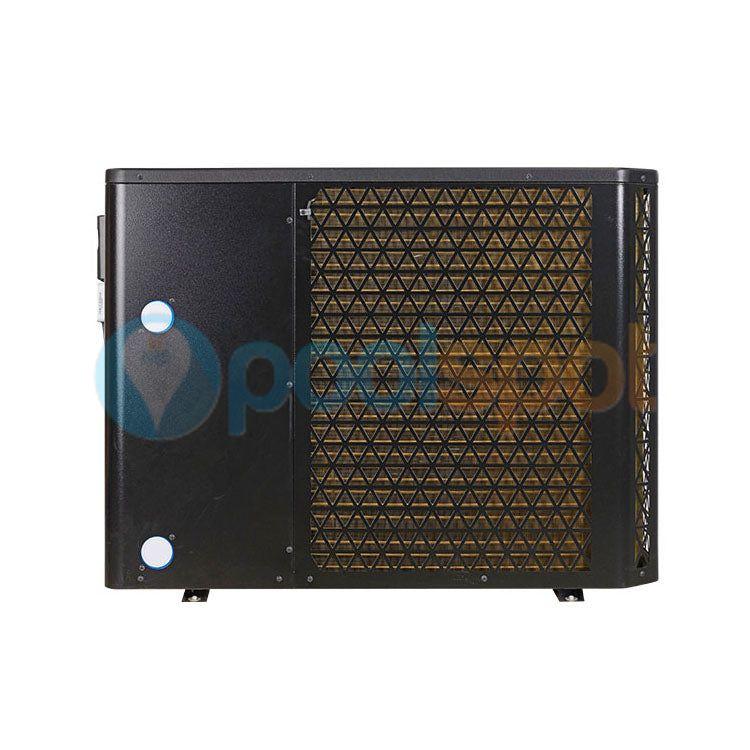

Guardian EcoPro Series Heat Pump

Model

GE-9

GE-12

GE-16

GE-20

GE-24

GE-28T

GE-35T

Performance (Air 27°C, Water 26°C, Humidity 80%)

Heating Capacity (kW)

2.3-9.0

2.5-12.0

3.1-16.0

3.70-20.0

6.5-24.3

7.1-28.2

8.15-35.1

C.O.P.

14.2-6.4

14.1-6.3

13.9-6.3

13.8-6.2

14.5-6.5

14.3-6.4

14.3-6.8

Performance (Air 15°C, Water 26°C, Humidity 70%)

Heating Capacity (kW)

1.7-7.0

2.1-9.0

2.4-12.6

2.6-14.5

4.5-19.0

5.1-21.0

7.8-24.4

C.O.P.

7.2-4.8

7.1-4.7

7.0-4.6

6.9-4.6

7.3-4.9

7.2-4.8

7.3-4.4

General Specifications

Operating Air Temp

-7 to 43­°C

Compressor Type

Mitsubishi Rotary/Inverter

Panasonic Rotary/Inverter

Refrigerant

R32

Heat Exchanger

Titanium

Casing Type

ABS

Power Supply

220-240V~/1Ph/50Hz

380-415V~/3Ph/50Hz

Electrical Connection

10amp

15amp plug

Requires hardwiring

Rated Input Power (kW)

0.16-1.41

0.18-1.90

0.22-2.54

0.27-3.22

0.45-3.74

0.49-4.41

Max Rated Input Power (kW)

2.1

2.49

3.8

3.8

4.9

6.3

7.23

Running Current at 100% (A)*

6.48

8.73

11.67

14.79

17.82

11.73

9.35

Sound Pressure 1m dB(A)

39-50

41-52

42-53

43-54

49-56

47-55

46-57

Sound Pressure 10m dB(A)

11-22

13-24

14-25

15-26

21-28

19-27

19-30

Water Connection (mm)

40mm

Flow Rate (L/min)

53

67

87

100

173

200

230

Water Pressure Drop (max) (kPa)

4.0

3.0

4.0

5.0

10.4

12.0

16

Net Weight (kg)

49

58

66

70

89

93

99

Net Dimensions (LxWxH) (mm)

999x418x605

1044x453x768

1158x467x862

1159x490x858

1159x490x858

1159x490x858

1159x490x858
